Separator

PE separator for EFB

Excellent performance and reduced water loss for EFB.

Separator for EFB has improved pore structure for regular pore size. Also, water loss and life time are significantly improved.

GENERAL SPECIFICATION

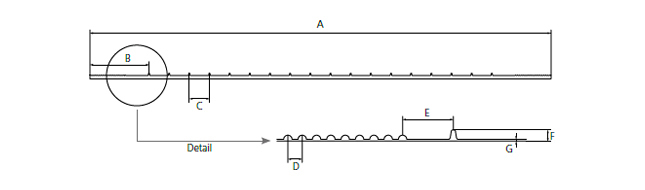

Drawing and dimensions of PE separator

Drawing and dimensions of PE separator
Properties units Dimensions Tolerance
A Width mm 160 ±0.5
F Overall thickness mm 0.8~1.0 ±0.03
G Backweb thickness mm 0.25 ±0.03
B Shoulder mm 17.5 14 min.
D Mini-rib spacing mm 1.42
C Main-rib spacing mm 12.4
E Mini-main rib spacing mm 5.2
- Number of main-ribs EA 18

※ Dimension can be tailored by customer’s requirement.

PE Technical data of PE separator

Key technical data @ 0.20mm backweb
Properties units Spec. Normal value Test method
Moisture % 4.0 max. 2.5 BCIS-03B -7
Oil contents % 15±3 17 SIC standard
Ash contents % 68±3 68 SIC standard
Electrical resistance Ω·㎠ * 0.055 BCIS-03B -18
Porosity % 55±5 55 BCIS-03B -7
Tensile strength MD N/㎟ 6.5 min. 14 BCIS-03B -11
CMD N/㎟ 3.5 min. 6
Elongation MD % 300 min. 400
CMD % 300 min. 550
Puncture strength N 5 min. 12 BCIS-03B -13
Oxidation resistance Hr 130 min. 180 SIC standard

※ Electrical resistance can be tailored by customer’s requirement.
